Glossy Film

  • Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

  • Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

  • Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

  • Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

  • Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

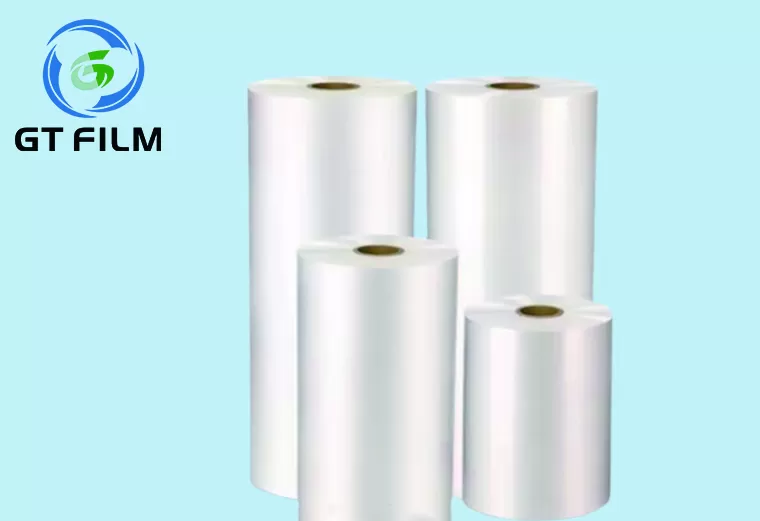

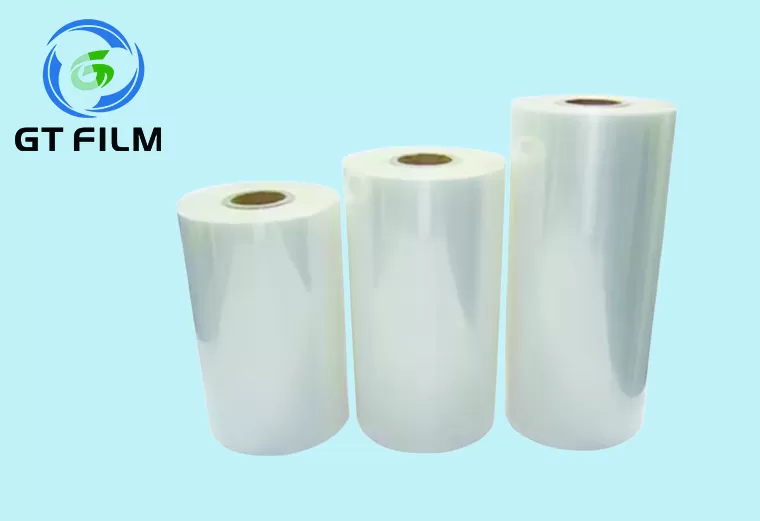

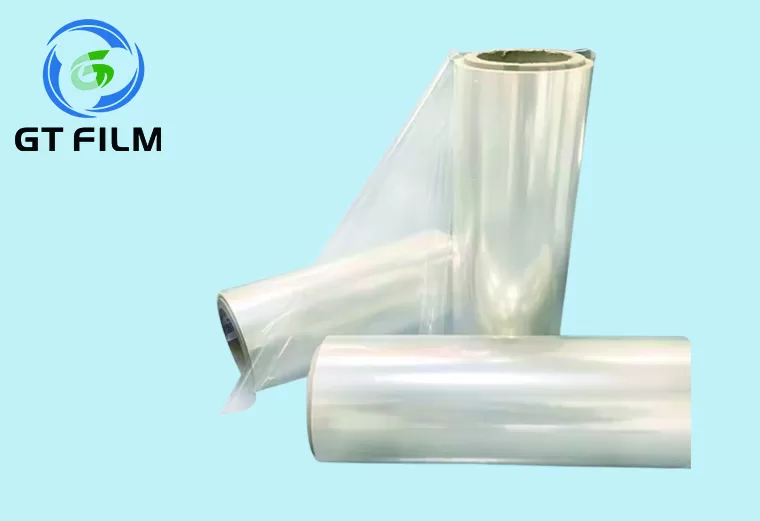

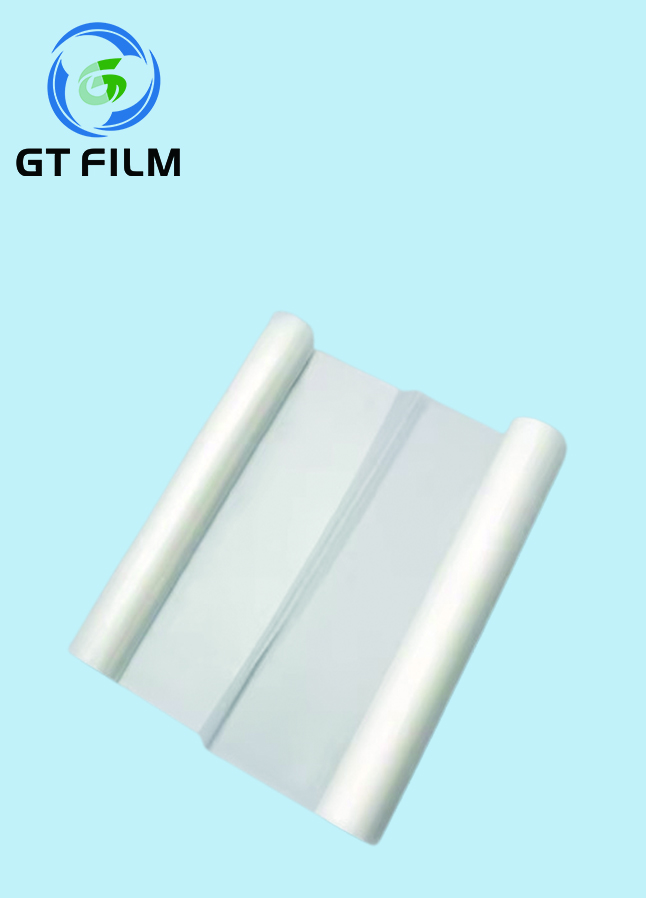

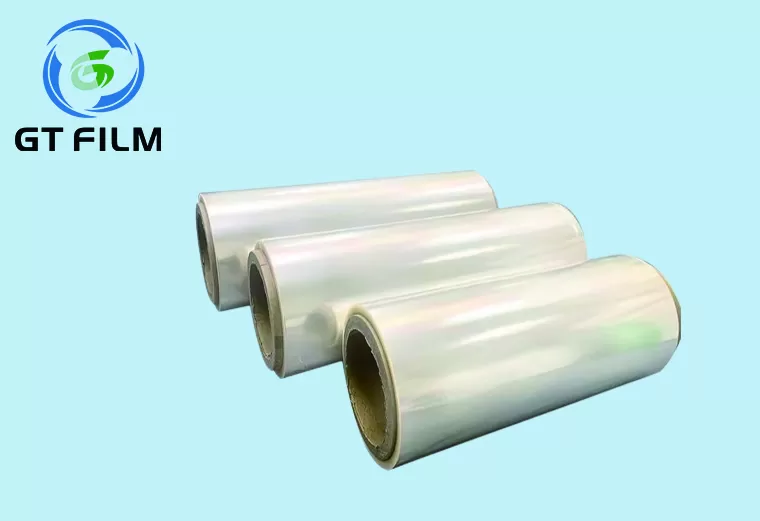

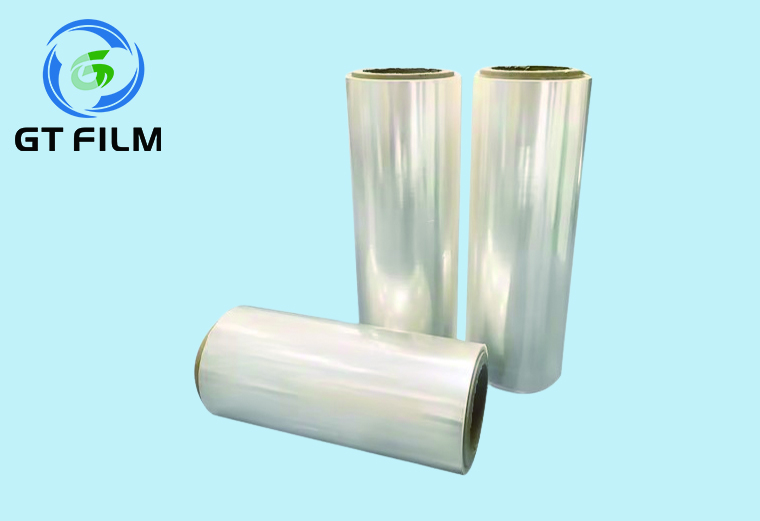

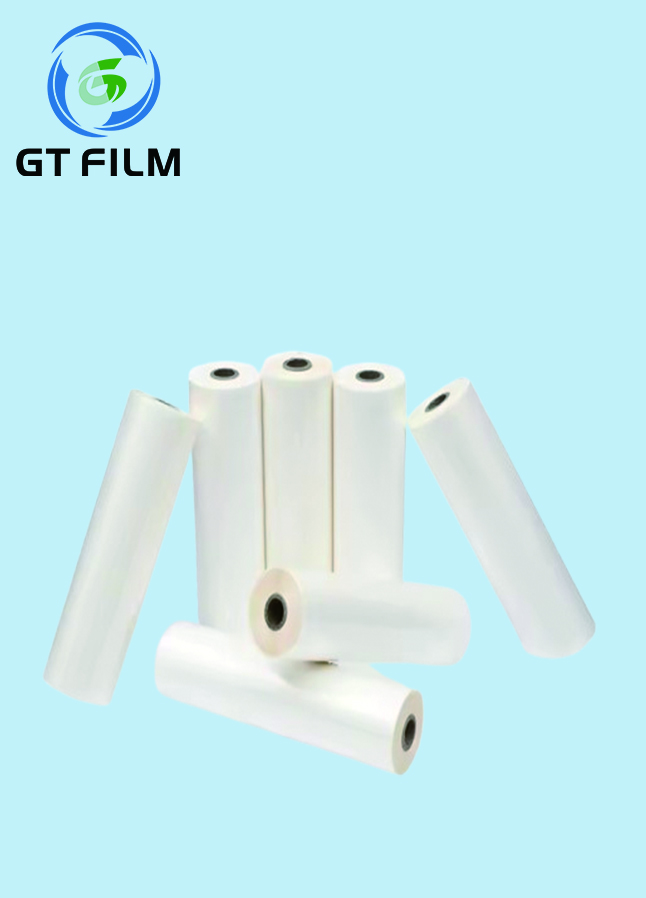

Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

Model Number  Mia01

Hardness        Soft

Processing Type  Multiple Extrusion

Thickness       20mic

Width          300mm-1600mm

Length          1000-6000m


Share:

Feature

Good Antistatic.

Excellent machinability.

Good gloss and transparency.

Low haze.

Standard Thickness (10 TO 20 µ).

Gloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protectionGloss 22mic BOPP thermal lamination film 27mic custom thickness for printed paper protection

Application

BOPP film is suitable for food and gift packaging.

BOPP Film
PropertyUnitTypical ValuesReferenceMethod
Thicknessμm18.0+/- 3%GB/T 6672
Densityg/cm30.860+/- 2%GB/T 1033.1
Weightg/m215.5+/- 2%GB/T 6672
Yieldm2/kg65.5+/- 2%GB/T 6672
Tensile strengthMDN/mm2129≥110GB/T 1040.3
TDN/mm2253≥200GB/T 1040.3
Thermal shrinkage
(120C 2mins)
MD%3.81≤4.0GB/T 10003
TD%0.41≤3.0GB/T 10003
Thermal shrinkageMD%175≤200GB/T 1040.3
TD%64≤80GB/T 1040.3
Coefficient of FrictionCorona treated side -0.36≤0.60GB/T 10006
Corona untreated side-0.47≤0.60GB/T 10006
Haze%80.6≥75.0GB/T 2410
Gloss(45°)%7.5≤8.0GB/T 8807
Wetting tension (single side)mN/m38≥38GB/T14216-2008
