Manufacturer In China Transparent Polypropylene Film Cpp Film Pp Rolls No reviews yet

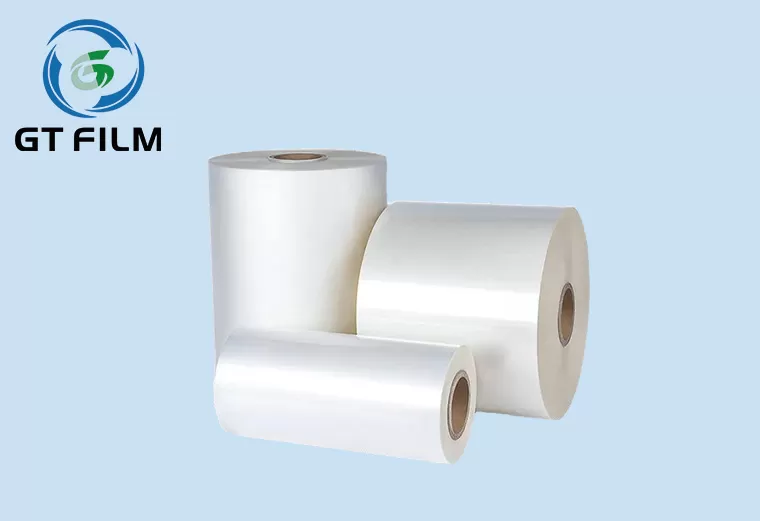

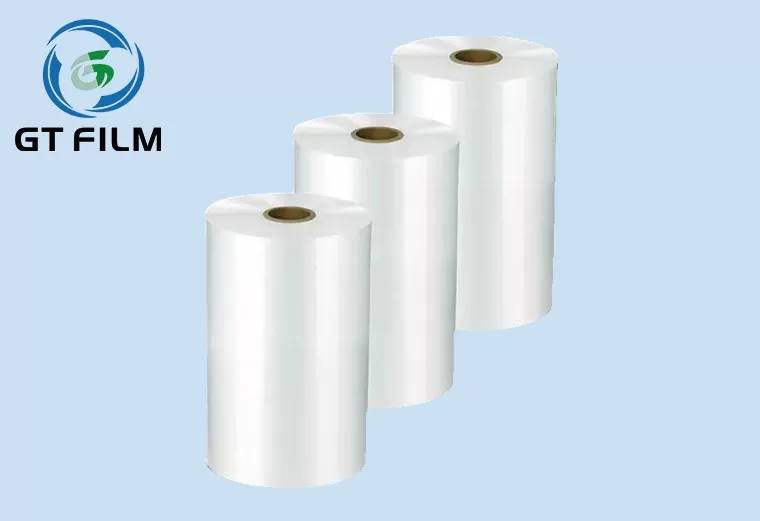

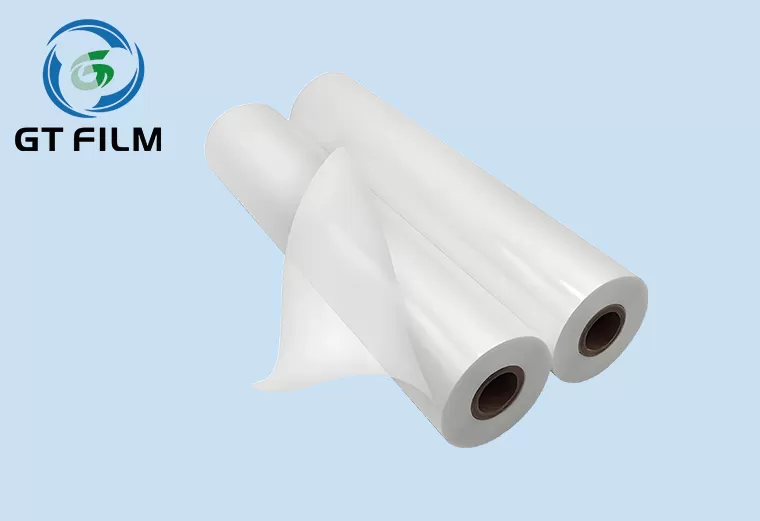

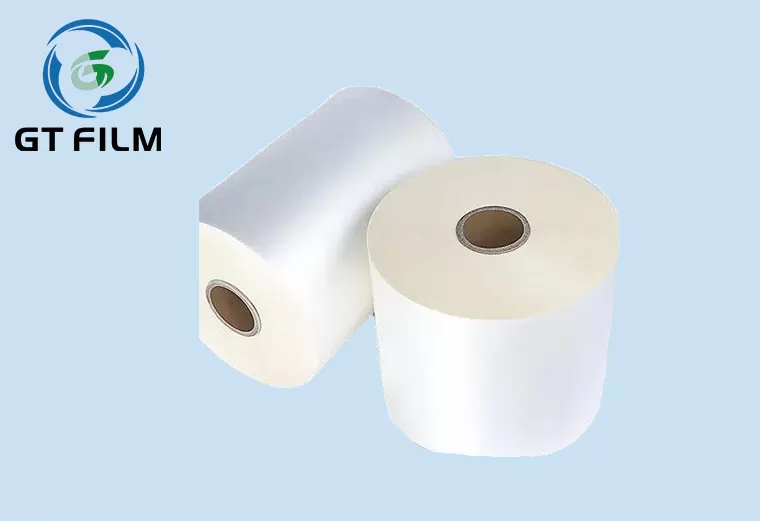

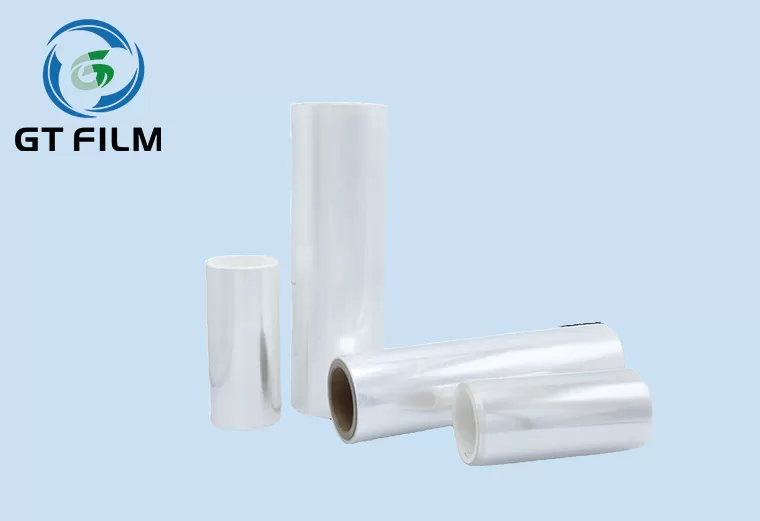

The OPP CPP laminating film roll is a food grade plastic film roll, with high sealing hermetic. the inner sealing layer-CPP film is an co-extruded polypropylene film, one side slipped as the sealing layer, and other side treated with Corona, the heat seal temperature 130-140℃. So this OPP CPP film roll would be CPP film laminated barrier material OPPfilm. The ideal flexible OPP CPP film packaging would be instead of traditional single material packaging, and the cost will not rise. it is more known as food grade plastic film roll, when to make pouch, it worked on auto packaging machine, the OPP CPP film roll has low heat sealing temperature property, so could be turn down to a lower temperature, and high speed.

Inquire Now Next Products

PROPERTIES		TEST METHOD (ASTM)	UNIT	TYPICAL VALUE
THICKNESS		D-2673	Micron (Mil)	20 30 40 0.8 1.2 1.6
FILM DENSITY GRAMMAGE YIELD CORONA LEVEL/ WETTING TENSILE COEFF OF FRICTION (Corona/ Non) HAZE JOINTS NUMBER SECTION FLETNESS		D-792 International International D-2578 D-1894 D-1003 International International	gm/cc gm/m2 m2/kg Dyne/cm - - m2 -	0.91 0.91 0.91 18.2 27.3 36.4 54.9 36.6 27.5 38 38 38 0.3/0.15 0.3/0.15 0.3/0.15 3.9 4.2 4.5 ≤1 ≤2mm
TENSILE STRENGTH AT BREAK		D-882	MPa (KPsi)	48 53 65 33 34 35 7.0 7.9 9.42 4.8 4.9 5.07
ELONGATION AT BREAK	MD* TD* MD* TD*	D-882	%	529 540 572 700 711 722
HEAT SEAL TEMPERATURE	MD* TM*	1s, 300MPa, 60℃for under layer	℃	130 135 140
HEAT SEALING STRENGTH		D-882	N/15mm	≥7.2 ≥7.9 ≥8.6
FINISH		No Folding, Air bubble fracture, Perforation, scratches, impurities, oi

Industrial Use	Food
Processing Type	Multiple Extrusion
Thickness	15-150 microns
Width	300-800mm
Length	2000 - 6000 m
Treatment	Corona
Heat sealing temperature	110 - 140 ℃
Packing	1 CPP roll in bubble&corrugated paper, 10 CPP rolls into 1 pallet
Certificate	ISO9001,ISQ14001
Packaging Details	The CPP film roll be covered with bubble and corrugated paper, ten CPP rolls be holded on pallet by PE wrapping film, 18 pallets into 1 container. Customized packing is avaliable.
