Material: BOPP
Type: Stretch Film
Transparency: Transparent
Hardness: Soft
Thickness18um-22um&customized
Width 20cm-50cm
Length100mm-1800mm Customized
Product model: GT-Joan 1
Introduction BOPP Film
Biaxially oriented polypropylene (BOPP) film is film stretched in both machine and transverse directions, producing molecular chain orientation in two directions. BOPP film is produced by a tubular process, in which a tubular bubble is inflated, or a tenter frame process, in which a thick extruded sheet is heated to its softening point (not to the melting point) and is mechanically stretched by 300-400%.
Primary Advantage
1. Enhance the finished product's value through high transparency and super gloss finish. Prevent lamination from being pressed, bubbled and desquamated. Protect from harmful substances and water-proof, making long life storage for printings.
2. Available in various paper and inks, and suitable for lamination even with powder paper. After be treated with corona on the surface, it is good for spot UV and hot stamping.
3. Excellent cost saving as mixing of adhesive, coating and drying processes are not required. The operation doesn't ask for special technique and the film can be used in dry and wet laminator.
4. Environmental friendly, pollution-free working environment. No hazardous to health and secure to use as no toxic gases or volatile content is emitted.
Main Functions
Packaging Film
What field is this product used in?

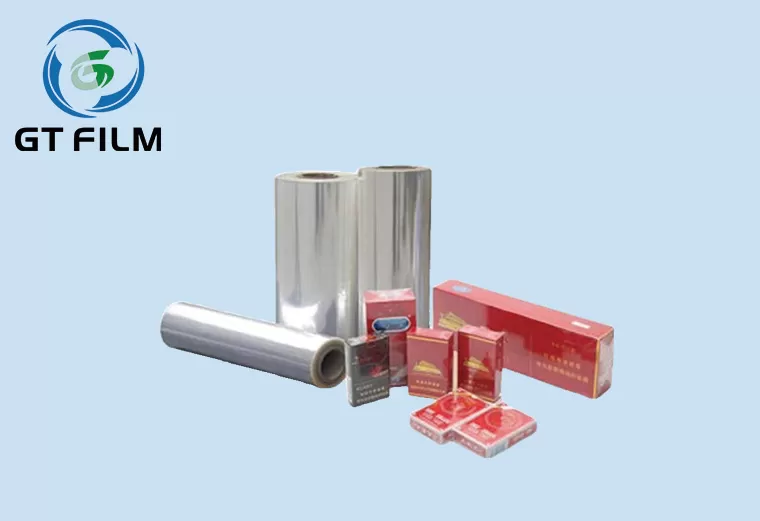

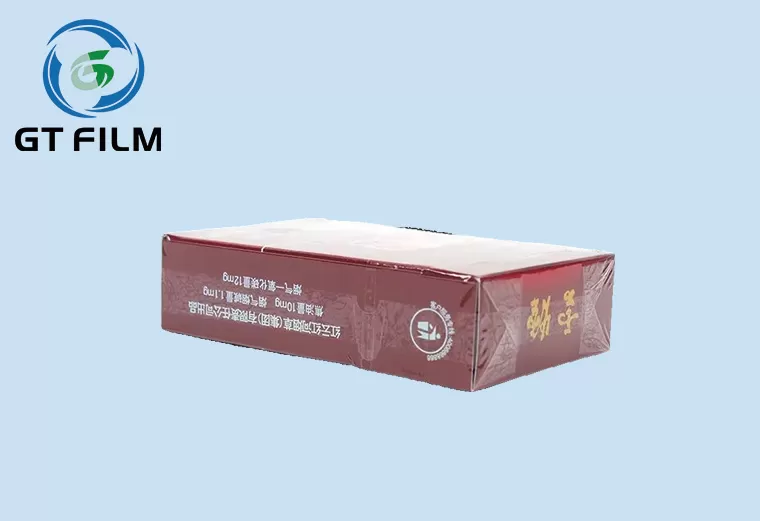

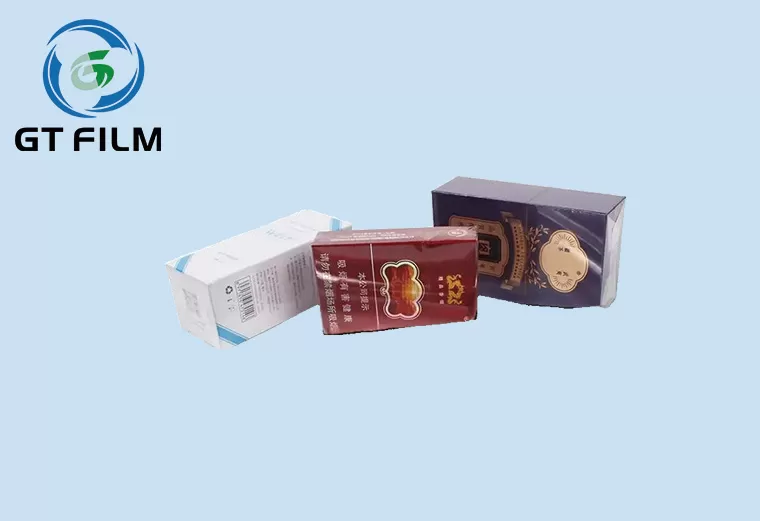

This product is mainly used for cigarette packaging
| No. | Item | Unit | Result | |
| 1 | Width bias | mm | 0 | |
| 2 | Thickness bias | % | -0.93 | |
| 3 | Average thickness bias | % | 0.64 | |
| 4 | Tensile strength | MD | Mpa | 182.6 |
| TD | 295.3 | |||
| 5 | Elongation | MD | % | 158.5 |
| TD | 59.2 | |||
| 6 | Modulus(reference value) | MD | Mpa | 2033.82 |
| 7 | Heat shrinkage | MD | % | 3.5 |
| TD | 3.9 | |||
| 8 | Haze | % | 1.72 | |
| 9 | Gloss | % | 96.2 | |
| 10 | Decaying rate of static | Treated side | 22.32 | |
| No-treated side | 20.58 | |||
| 11 | COF(q/m) | Outside/Metal | 0.218/0.146 | |
| Inside/ Metal | 0.311/0.213 | |||
